Product descripation:

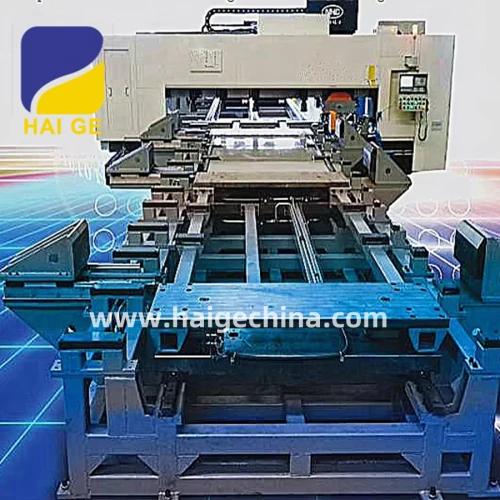

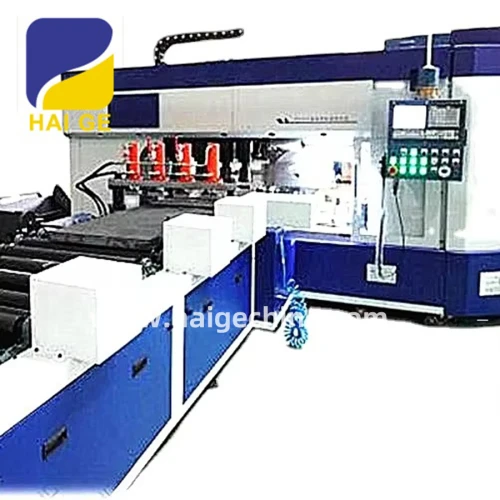

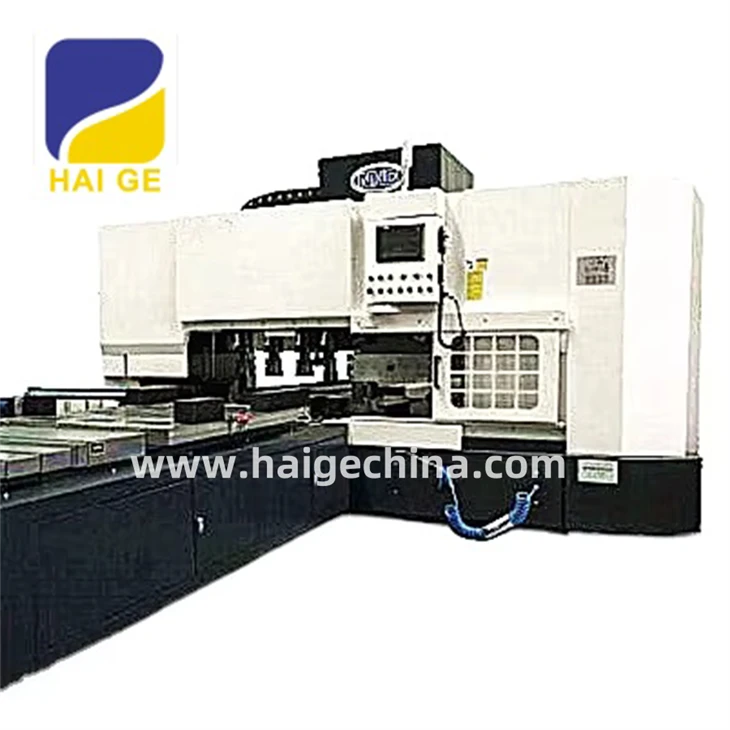

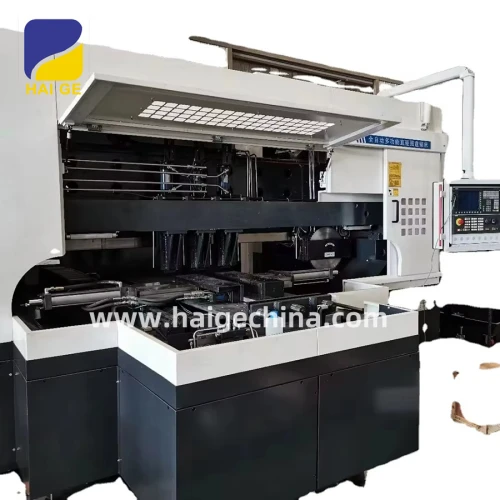

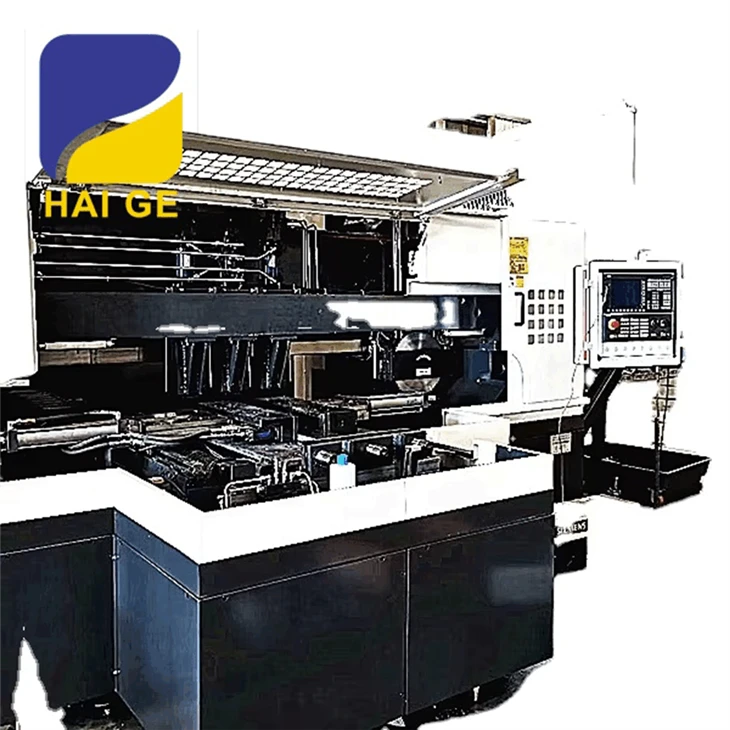

CNC Steel Plate Sawing and Milling Machines are currently in a monopoly state by foreign countries, and in China it is still in the early stage of research and development. our factory dared to be the first, and lasted for five years, overcame many difficulties, took the lead in the development of CNC Steel Plate Sawing and Milling Machine, filled the gap of high-efficient precise sawing and milling by circular sawing machine in China, and its performance reached the international advanced level. The machines can be widely used in metallurgy, machinery, mold making and other industries. Compared with traditional band sawing machines, the circular sawing machines have the features such as fast sawing speed, high accuracy and excellent cutting surface. The steel plate cutting process is clamped synchronously in the vertical direction and the cutting direction. The special design ensures positioning accuracy and cutting stability and reliability. The machine tool adopts oil spray micro-lubrication cooling method, which is clean and of pro-environment. Due to the edge of the tool, the cutting surface has the milling result. The machines consist of two parts, one is cutting motion and feeding motion by the circular saw blade, the other is feeding and discharging motion of the steel plate. The movement uses a numerical control system to control the servo motor to achieve stepless speed change. Adjust cutting speed and feeding speed as per the property and thickness of the cutting materials; adjust the length optionally as per cutting requirement. The precision of the machining products are high and the flatness, perpendicularity and roughness of the sawing surface are good. The machines adopt a fixed-beam type gantry frame structure to facilitate the feeding and discharging of the steel plate. The cutting length of the steel plate is not limited by the machine structure.
2. Fitur Utama:
Mainly used for flat bar cutting. Features： >The main structural parts are made of high-grade castings, and the machine tool has good rigidity; >The guide rail adopts a rolling-sliding composite structure, and the machine tool runs smoothly; >The creative design of the gear box ensures zero clearance of the main shaft output and prolongs the service life of the circular saw blade; >Both feeding and cutting feed are controlled by servo motor and CNC system to ensure the precision of sawing length; >Penjepitan benda kerja mengadopsi penekanan atas dan penjepitan samping dua-arah, dan penjepitannya aman dan terjamin.
3. komposisi spesifikasi:
Spesifikasi:
HGKL2310
Terutama digunakan untuk memotong piring.
Fitur:
>Bagian struktural utama terbuat dari coran bermutu tinggi-, dan alat mesin memiliki kekakuan yang baik;
>Rel pemandu mengadopsi struktur komposit geser-geser, dan perkakas mesin bekerja dengan lancar;
Panjang potong:
Panjang Plat : Clamp Mode : Kecepatan Putar : Spindle Motor Power : Cut Feed Motor Power : Feed Motor Power : Cut Side Roughness :
Lebih besar dari atau sama dengan 20 mm
Kurang dari atau sama dengan 10000 mm Horizontal dan Vertikal
50-120 putaran / menit, Perubahan Kecepatan Tanpa Langkah 22 kW
4,7 kW 6 kW
Kurang dari atau sama dengan Ra 6.3
Kecepatan Umpan:
Ketepatan Poros Utama: Mode Dingin: Setelah Panjang Umpan: Kompresi Udara: Mode Penghapusan Chip: Mode Pelepasan: Sirkulasi:
100-400 mm / mnt, Perubahan Kecepatan Tanpa Langkah
{}.005-0,01 mm
Pendinginan Semprotan Minyak dan Kabut
Kurang dari atau sama dengan 810 mm Pengumpanan Daur Ulang 0,5-0,6 MPa
Otomatis Otomatis Tunggal, Banyak
>Desain kreatif kotak roda gigi memastikan jarak bebas nol dari output poros utama dan memperpanjang masa pakai
dari mata gergaji bundar;
>Pengumpanan dan pemotongan pakan dikendalikan oleh motor servo dan sistem CNC untuk memastikan ketepatan panjang penggergajian;
>Penjepitan benda kerja mengadopsi penekanan atas dan penjepitan samping dua-arah, dan penjepitannya aman dan terjamin.
Cut Side Perpendicularity : Less than or equal to {{0}}.35 mm / 100 mm Cut Side Straightness : Less than or equal to 0.5 mm / 2300 mm Cut Tolerance : ±1 mm
Berat Mesin : Dimensi Mesin :
30 T
11000 x 7000 x 2700 mm
5. Pengepakan dan pengiriman:
kami memiliki banyak pengalaman dalam mengekspor kemasan transportasi. Mengambil tindakan perlindungan multi:
6. profil perusahaan:
Yantai Haige International Trading Co.,Ltd.,is a joint-stock enterprise engaged in exporting products such as machines,pumps and parts etc. produced in China to the markets abroad,which is located in Laishan district,Yantai City,Shandong Province,China. Our company is based on the manufacturing plant-Yantai Haige machine tools Co.,Ltd and Yantai Hangjian Refined Special Steel Equipment Co.,Ltd. which focus on manufacturing many kinds of metal finishing equipment. Area of the factory is about 10000 square meter. There are one hundred and sixty staffs working in the factory,includes 14 staffs focusing on RD.
We have exported various products which mostly are machines and machine parts to many countries.We can provide timely oversea service. We are the exclusive agent of Yantai Volm Vacuum Technology Co.,Ltd.,which focus on manufacturing various of vacuum pumps,we represent their business in international markets.Also we are appointed to be the sole sales agent of Shandong Gexin machinery manufacturing Co.,Ltd. for their Rotational Moulding products and machine. We focus on the the quality of the products we sell,We welcome you to our plant and hope to have the pleasure of providing you the perfect products and best services.
7. Kunjungan pelanggan:
8. Pameran:
9. Sertifikat:
10. layanan pelanggan:
1Masa garansi kualitas gratis selama 12 bulan, kecuali suku cadang yang aus.
5. Teknisi kami dapat menawarkan layanan luar negeri, termasuk pemasangan pemandu, commissioning, pelatihan, dll, jika kebutuhan pelanggan kami.
11. FAQ:
1. When is the delivery time? Delivery will occur between 15 and 20 days from order date. Faster delivery time can be arranged if needed.2. Do you have any MOQ limit? Yes it depends on the products' size and production process.3. What's your payment method? Paypal, T/T, L/C, Western Unions, are available.
